Transport Level Security: TLS/SSL, VPNs, Firewalls & Secure Protocols

Core Concepts

Transport Layer Security (TLS/SSL)

TLS (Transport Layer Security) and its predecessor SSL (Secure Sockets Layer) are cryptographic protocols designed to provide secure communication over a computer network. They operate at the transport layer (Layer 5) of the OSI model, ensuring data confidentiality, integrity, and authentication between applications.

How TLS Works

TLS uses a combination of symmetric encryption (for speed) and asymmetric encryption (for key exchange) to secure data. The process involves four main phases:

1. Handshake Phase: Establishes a secure connection.
2. Key Exchange: Uses asymmetric encryption (e.g., RSA or Diffie-Hellman) to exchange a symmetric key.
3. Authentication: Verifies the identity of the server (and optionally the client) using digital certificates.
4. Data Transfer: Encrypts data using symmetric encryption (e.g., AES).

sequenceDiagram
    participant Client as Client (Browser)
    participant Server as Server (Website)
    Client->>Server: ClientHello (supports TLS 1.3, cipher suites)
    Server->>Client: ServerHello, Certificate, ServerKeyExchange
    Client->>Server: ClientKeyExchange, ChangeCipherSpec, Finished
    Server->>Client: ChangeCipherSpec, Finished
    Note over Client,Server: Symmetric key established\nSecure session begins

TLS Record Protocol

TLS encrypts data using the TLS Record Protocol, which:

• Compresses data (optional).
• Applies a Message Authentication Code (MAC) for integrity.
• Encrypts the data (e.g., using AES or ChaCha20).
• Transmits the result.

TLS Versions

Worked Example: HTTPS Connection (eSewa Payment)

When you log in to eSewa to make a payment:

1. Your browser sends a ClientHello to https://esewa.com.np.
2. The server responds with its digital certificate (issued by a trusted CA like DigiCert).
3. Your browser verifies the certificate and negotiates a symmetric key using ECDHE (Elliptic Curve Diffie-Hellman Ephemeral).
4. All subsequent data (login credentials, payment details) is encrypted with AES-256-GCM.

A visual breakdown of the TLS handshake phases. (Image: Fleshgrinder and The People from The Tango! Desktop Project., Public domain, via Wikimedia Commons)

Virtual Private Networks (VPNs)

VPNs create a secure, encrypted tunnel over an untrusted network (e.g., the internet) to protect data in transit. They are widely used by:

• Individuals: To bypass geo-restrictions (e.g., accessing Netflix US from Nepal).
• Businesses: To securely connect remote offices or employees (e.g., Ncell’s remote workforce).
• Governments: To secure diplomatic communications.

How VPNs Work

1. Authentication: User authenticates via username/password, certificates, or biometrics.
2. Tunnel Establishment: A secure tunnel is created using IPSec or OpenVPN.
3. Encryption: All traffic is encrypted (e.g., using AES-256) and routed through a VPN server.
4. Decryption: The VPN server decrypts and forwards traffic to the destination.

VPN Protocols

Worked Example: Ncell Employee Accessing Corporate Network

An Ncell employee in Pokhara connects to the corporate network via VPN:

1. The employee’s device connects to vpn.ncell.com using OpenVPN.
2. The VPN server authenticates the employee via RADIUS (username/password + 2FA).
3. All traffic (emails, internal databases) is encrypted with AES-256.
4. The employee accesses internal resources as if on the local network.

Firewalls

Firewalls act as a barrier between a trusted internal network and untrusted external networks (e.g., the internet). They filter traffic based on rules (e.g., IP addresses, ports, protocols).

Types of Firewalls

Worked Example: Blocking Malicious Traffic to a Bank

A firewall at NMB Bank is configured to:

• Allow traffic on port 443 (HTTPS) to bank.nmb.com.
• Block all inbound traffic on port 22 (SSH) from external IPs (except whitelisted admins).
• Drop packets with malformed TCP flags (potential scans).

Secure Protocols

Several protocols ensure secure communication at the transport layer:

1. HTTPS (HTTP + TLS)

• Used for secure web browsing (e.g., Daraz, eSewa).
• Ensures confidentiality and integrity of web traffic.

2. FTPS (FTP Secure)

• Secures File Transfer Protocol (FTP) using TLS.
• Used by NTC to securely transfer network configuration files.

3. SSH (Secure Shell)

• Replaces insecure Telnet for remote access.
• Used by Nepal Stock Exchange (NEPSE) admins to manage servers.

4. SMTP with TLS (SMTPS)

• Secures email transmission (e.g., Gmail, Ncell Email).

Comparison Table: Secure vs. Insecure Protocols

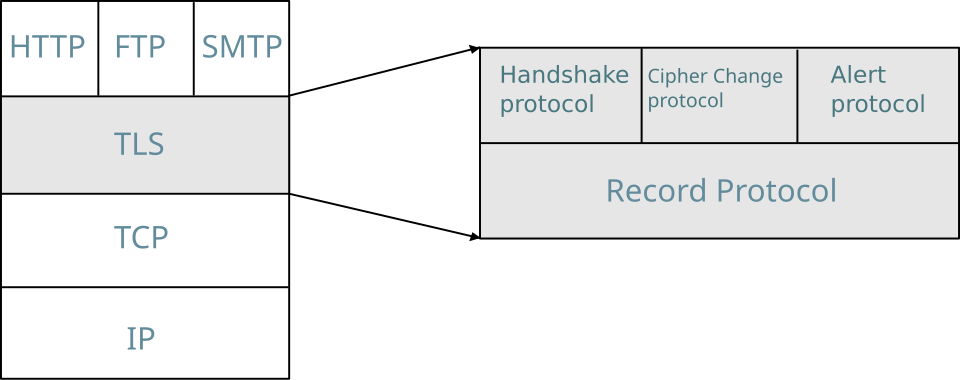

A layered diagram showing where TLS fits in the OSI model (between transport and application layers). (Image: Gorivero, CC BY 3.0, via Wikimedia Commons)

## In the real world

1. eSewa (HTTPS/TLS)

   • When you pay bills via eSewa, TLS encrypts your card details and transaction ID to prevent man-in-the-middle (MITM) attacks. The site uses TLS 1.3 with ECDHE-RSA-AES256-GCM-SHA384, ensuring forward secrecy.

2. Ncell VPN for Remote Workers

   • Ncell employees in rural areas use OpenVPN to securely access internal databases (e.g., customer records). The VPN enforces two-factor authentication (2FA) and logs all sessions for auditing.

3. Daraz’s Firewall Rules

   • Daraz’s servers block SQL injection attempts by filtering malicious payloads at the firewall (e.g., dropping requests with ' OR 1=1 --). Their NGFW also scans for zero-day exploits in real time.

4. NTC’s FTPS for Network Updates

   • NTC technicians use FTPS to securely upload firmware updates to base stations. Without encryption, attackers could intercept and modify the firmware, disrupting services.

5. NEPSE’s SSH for Server Management

   • NEPSE admins use SSH key pairs (not passwords) to log into trading servers. If an attacker steals a password, they cannot decrypt past sessions due to TLS’s forward secrecy.

## Exam Tip

1. Diagrams Are Key

   • Draw the TLS handshake (ClientHello → ServerHello → Key Exchange → Finished).
   • Sketch a VPN tunnel showing encryption/decryption at both ends.
   • Label a firewall rule table with source/destination ports and actions (ALLOW/DROP).

2. Compare Protocols

   • Memorize the differences between TLS 1.2 vs. 1.3 (e.g., 1.3 removes RSA key exchange, uses 0-RTT).
   • Know when to use SSH vs. FTPS (SSH for remote access, FTPS for file transfers).

3. Real-World Scenarios

   • Expect questions like:
     • "How does eSewa prevent MITM attacks during login?" (Answer: TLS certificate pinning + HSTS).
     • "Why does Ncell use OpenVPN instead of PPTP?" (Answer: PPTP is vulnerable to MS-CHAPv2 cracking).
   • Always tie answers to Nepali companies (eSewa, Ncell, NTC, NEPSE).

4. Weaknesses to Watch For

   • POODLE (SSL 3.0), Heartbleed (OpenSSL), BEAST (CBC mode).
   • VPN risks: Misconfigured firewalls, weak encryption (e.g., DES).

5. Maths for Marks

   • Calculate TLS session resumption time savings (TLS 1.3’s 0-RTT).
   • Estimate VPN overhead (e.g., 10% latency increase due to encryption).
