Big Data Architecture: Layers, Models, and Components

Key Concepts and Architectural Models

1. Lambda vs. Kappa Architecture: A Trade-off Between Batch and Stream Processing

Big data architectures are broadly classified into two models:

• Lambda Architecture: Combines batch processing (for historical data) and speed layers (for real-time data) to ensure accuracy and low latency.
• Kappa Architecture: Relies solely on stream processing (e.g., Apache Kafka + Spark Streaming) for real-time analytics, simplifying the system but requiring fault tolerance.

classDiagram
    class LambdaArchitecture {
        +Batch Layer (Hadoop MapReduce)
        +Speed Layer (Storm/Spark Streaming)
        +Serving Layer (Pre-computed views)
    }
    class KappaArchitecture {
        +Stream Processing (Kafka + Spark)
        +No Batch Layer
    }
    LambdaArchitecture --> KappaArchitecture : "Evolves into Kappa by removing batch layer"

Why the choice matters:

• Lambda is used where historical accuracy is critical (e.g., fraud detection in banks like NMB).
• Kappa is preferred for real-time dashboards (e.g., Pathao’s dynamic pricing).

2. Data Lakes vs. Data Warehouses: Storage Strategies

Worked Example: NTC’s CDR Analysis NTC stores billions of call logs in a data lake (HDFS) for:

1. Fraud detection (real-time stream processing with Spark).
2. Network optimization (batch analysis of historical trends). Without a data lake, NTC would need to pre-process data into a warehouse, slowing down real-time alerts.

3. Distributed Storage and Compute: HDFS and YARN

Big data systems distribute workloads across clusters using:

• HDFS (Hadoop Distributed File System): Stores data across commodity servers with replication (default: 3 copies) for fault tolerance.
• YARN (Yet Another Resource Negotiator): Manages compute resources (CPU/memory) for applications like MapReduce or Spark.

graph TD
    A["HDFS"] -->|"Stores Data"| B["DataNodes"]
    A -->|"Manages Metadata"| C["NameNode"]
    D["YARN"] -->|"Allocates Resources"| E["ResourceManager"]
    E -->|"Schedules Tasks"| F["NodeManagers"]
    F -->|"Executes Jobs"| G["MapReduce/Spark"]

Real-World Tie-In: Daraz’s Inventory System Daraz uses HDFS + YARN to:

• Store product catalogs (100M+ items) across distributed nodes.
• Run real-time inventory updates via Spark jobs triggered by order queues (e.g., a user buying a phone in Kathmandu updates stock in Pokhara instantly).

4. Data Ingestion Layers: Batch vs. Stream

Worked Example: Khalti’s Transaction Processing Khalti processes 50,000+ transactions/minute using:

1. Kafka to ingest payment requests as streams.
2. Spark Streaming to validate transactions in real-time.
3. HDFS to store raw transaction logs for audits.

5. Serving Layer: Pre-Computed Views and APIs

The serving layer provides low-latency access to processed data via:

• Pre-computed views (e.g., "top 10 trending products" on Daraz).
• REST APIs (e.g., Ncell’s customer balance check).

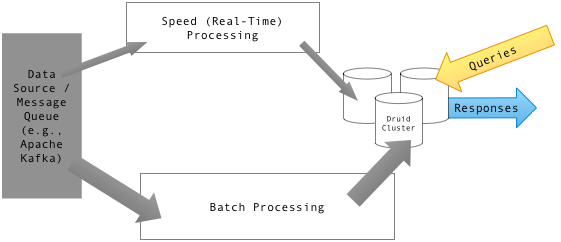

How pre-aggregated data is served to users. (Image: Textractor, CC BY-SA 4.0, via Wikimedia Commons)

Real-World Example: eSewa’s Loan Approval eSewa uses a Lambda architecture to:

1. Batch layer: Analyze historical loan data (stored in HDFS) to train a risk model (weekly).
2. Speed layer: Use Spark to approve/reject loans in <2 seconds based on real-time credit scores.

In the Real World

1. Pathao’s Dynamic Pricing

   • Idea Used: Kappa Architecture (stream processing with Kafka + Spark).
   • How: Pathao ingests ride requests/second from drivers and passengers. Spark Streaming adjusts surge pricing in real-time based on demand (e.g., +50% during Kathmandu traffic jams). No batch layer is needed because pricing depends only on live data.

2. NTC’s Network Optimization

   • Idea Used: Data Lake + Batch Processing.
   • How: NTC stores raw CDR data (unstructured) in HDFS. Hadoop jobs run nightly to:
     • Identify fraudulent call patterns (e.g., SIM boxes).
     • Optimize cell tower placements in rural areas (e.g., using historical call density maps).

3. NEPSE’s Stock Market Analytics

   • Idea Used: Data Warehouse + Batch ETL.
   • How: NEPSE’s structured market data (prices, volumes) is loaded into a data warehouse (e.g., Snowflake) via Sqoop. Analysts run SQL queries to generate:
     • Daily trading reports.
     • Predictive models for stock trends (using historical batch data).

Exam Tip

1. Architecture Diagrams: Always draw Lambda vs. Kappa and HDFS/YARN in exams. Label:

   • Batch/Speed layers in Lambda.
   • Kafka + Spark in Kappa.
   • NameNode/DataNode in HDFS.

2. Real-World Mapping: Link concepts to Nepalese examples:

   • Data Lake → NTC/CDRs.
   • Stream Processing → Pathao/Khalti.
   • Batch Processing → NEPSE reports.

3. Short Answer Tricks:

   • HDFS = "Distributed storage with replication."
   • YARN = "Resource manager for Hadoop."
   • Lambda = "Batch + Speed layers."
   • Kappa = "Only stream processing."

4. Common Pitfalls:

   • Don’t confuse data lakes (raw) with data warehouses (structured).
   • Kappa is not a subset of Lambda—it’s an alternative.
   • HDFS is for storage; YARN is for compute.

Visual Summary Table:
