Boolean Algebra & Logic Gates: Laws, Simplification & Gate Design

TAKEAWAYS:

• Boolean algebra is the math of binary logic, with laws like idempotent, complement, and distributive that simplify digital circuits.
• Logic gates (AND, OR, NOT, etc.) are physical implementations of Boolean operations, and NAND/NOR are universal—any function can be built using just one type.
• De Morgan’s laws convert AND/OR expressions to NAND/NOR forms, critical for gate-level design.
• Karnaugh Maps (K-maps) visually simplify Boolean functions by grouping adjacent 1s/0s, reducing hardware complexity.
• Real-world applications include eSewa’s payment validation (AND logic for multi-factor checks), Khalti’s fraud detection (XOR for anomaly flags), and Ncell’s call routing (MUX/DEMUX for dynamic path selection).

1. Boolean Algebra: The Math Behind Digital Logic

Boolean algebra is a branch of algebra that deals with binary variables (0 and 1) and logical operations (AND, OR, NOT). It forms the foundation for designing digital circuits.

Key Definitions

• Binary Variables: Variables that take only two values: 0 (false/low) or 1 (true/high).
• Boolean Operations:
  • AND (· or ∧): Output is 1 only if all inputs are 1.
  • OR (+ or ∨): Output is 1 if any input is 1.
  • NOT (' or ¬): Inverts the input (0 → 1, 1 → 0).

Boolean Algebra Laws

These laws are used to simplify and manipulate Boolean expressions.

Worked Example: Simplifying a Boolean Expression

Problem: Simplify F = A + A'B + AB'C using Boolean laws. Solution:

1. Factor A from the first and third terms: F = A(1 + B'C) + A'B
2. Since 1 + B'C = 1, simplify to: F = A + A'B
3. This is the simplified SOP (Sum of Products) form.

2. Logic Gates: The Building Blocks of Digital Circuits

Logic gates are physical implementations of Boolean operations. They are the basic elements of digital circuits.

Standard Logic Gates

graph LR
    AND["AND Gate\nA·B"] -->|"Output"| ANDout
    OR["OR Gate\nA+B"] -->|"Output"| ORout
    NOT["NOT Gate\nA'"] -->|"Output"| NOTout
    NAND["NAND Gate\n(A·B)'"] -->|"Output"| NANDout
    NOR["NOR Gate\n(A+B)'"] -->|"Output"| NORout
    XOR["XOR Gate\nA⊕B"] -->|"Output"| XORout
    XNOR["XNOR Gate\nA⊙B"] -->|"Output"| XNORout

Universal Gates: NAND and NOR

• NAND and NOR gates are universal—any Boolean function can be implemented using only NAND or only NOR gates.
• Example: Implement A + B using NAND gates.
  1. A + B = (A' · B')' (De Morgan’s law).
  2. Use NAND gates to compute A', B', then (A' · B')'.

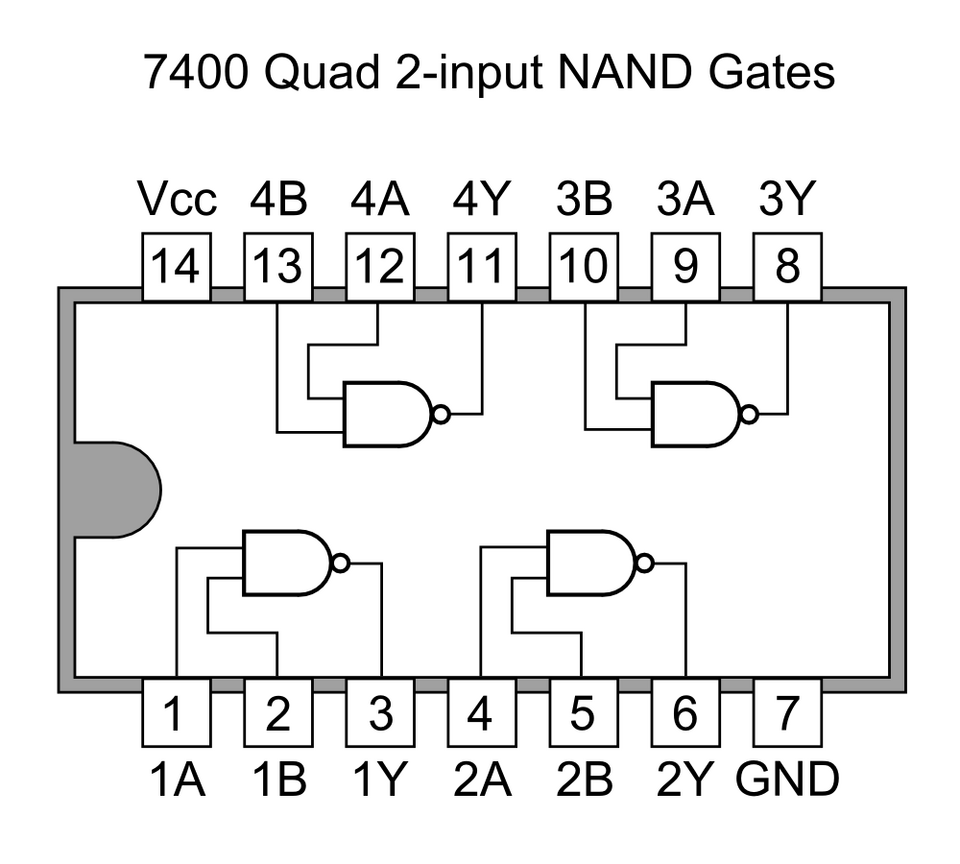

A real 7400 NAND gate IC (quad 2-input NAND). (Image: Tosaka, CC BY 3.0, via Wikimedia Commons)

3. De Morgan’s Laws: The Bridge Between AND/OR and NAND/NOR

De Morgan’s laws allow conversion between AND/OR and NAND/NOR expressions, critical for gate-level design.

De Morgan’s Laws

1. (A + B)' = A' · B'
2. (A · B)' = A' + B'

Worked Example: Converting to NAND/NOR

Problem: Convert F = (A + B)' · C to NAND-only form. Solution:

1. Apply De Morgan’s to (A + B)': F = (A' · B') · C
2. Replace · with NAND (since X · Y = (X' + Y')'): F = ((A' NAND B') NAND C')'
3. Use NAND gates to implement.

4. Karnaugh Maps (K-Maps): Simplifying Boolean Functions Visually

K-maps are graphical tools to simplify Boolean expressions by grouping adjacent 1s (for SOP) or 0s (for POS).

Steps to Simplify Using K-Map

1. List all minterms (for SOP) or maxterms (for POS).
2. Draw the K-map (2^n cells for n variables).
3. Group adjacent 1s in powers of 2 (1, 2, 4, 8, ...).
4. Write the simplified expression from each group.

Example: Simplifying F(A,B,C,D) = Σ(0,1,3,5,7,8,9,11,13,15)

1. K-map for 4 variables (A,B,C,D):

   CD\AB | 00 | 01 | 11 | 10
   -------------------------
     00  |  1 |  1 |  0 |  1
     01  |  1 |  1 |  1 |  0
     11  |  1 |  1 |  1 |  1
     10  |  1 |  0 |  1 |  1

2. Grouping:
   • Group of 8: A'C'D (top-left 8 cells).
   • Group of 4: A'BD (middle-left 4 cells).
   • Group of 2: AB'C (bottom-right 2 cells).
3. Simplified SOP: F = A'C'D + A'BD + AB'C

5. Real-World Applications of Boolean Logic

1. eSewa’s Payment Validation (AND Logic)

• Scenario: eSewa requires both a PIN and a fingerprint for high-value transactions.
• Boolean Logic Used:
  • Payment_Approved = PIN_Valid AND Fingerprint_Match
  • If either fails, the transaction is blocked (0).

2. Khalti’s Fraud Detection (XOR Logic)

• Scenario: Khalti flags transactions where the amount or time is inconsistent with user behavior.
• Boolean Logic Used:
  • Fraud_Alert = (Amount_Expected ⊕ Actual_Amount) OR (Time_Expected ⊕ Actual_Time)
  • XOR detects exclusive mismatches.

3. Ncell’s Call Routing (MUX/DEMUX)

• Scenario: Ncell routes calls dynamically based on network congestion.
• Boolean Logic Used:
  • Multiplexer (MUX): Selects the best tower for a call using Select lines.
  • Demultiplexer (DEMUX): Distributes calls to multiple towers based on Data and Select.

4. Daraz’s Order Queue (Priority Encoder)

• Scenario: Daraz prioritizes orders based on payment status, urgency, and stock availability.
• Boolean Logic Used:
  • Priority Encoder: Assigns a binary priority code to each order type (e.g., Paid_High = 11, Paid_Low = 01).

6. Exam Tip: How to Score Full Marks

1. For Boolean Simplification:

   • Always show intermediate steps (e.g., applying laws one by one).
   • For K-maps, circle groups clearly and label them with the simplified term.
   • Example: If asked to simplify F = A'BC + AB'C + ABC', show:
     • Group A'BC + AB'C = C(B + AB') → C(B + A) → C(B + A) (no further simplification).

2. For Gate Circuits:

   • Draw standard gate symbols (no stick figures).
   • Label inputs/outputs clearly (e.g., A, B → F = A + B).
   • For NAND/NOR-only implementations, explicitly state De Morgan’s steps.

3. For Truth Tables:

   • List all possible inputs (2^n rows for n variables).

   • Highlight outputs in bold or color.

   • Example: For F = A XOR B, show:

     A	B	F = A⊕B
     0	0	0
     0	1	1
     1	0	1
     1	1	0

4. For Real-World Questions:

   • Relate to known systems (e.g., "Like eSewa’s AND gate for multi-factor auth").
   • Draw a simple block diagram (e.g., a MUX for call routing).

Summary Table: Key Concepts at a Glance

Final Note: Practice simplifying expressions and drawing gate circuits daily. Use K-maps for 3-4 variable functions to master grouping. For exams, always justify your steps—examiners reward clarity!
