Signal Conditioning: Amplification, Filtering, Isolation & Linearization

What is Signal Conditioning?

Signal conditioning is the process of modifying raw sensor signals to make them suitable for further processing, display, or storage. Raw signals from transducers are often weak, noisy, nonlinear, or incompatible with measurement systems. Signal conditioning ensures accuracy, reliability, and compatibility.

Why is Signal Conditioning Necessary?

• Weak signals (e.g., from thermocouples, strain gauges) need amplification.
• Noise (electrical interference, environmental factors) must be filtered out.
• Nonlinearity in sensor output requires linearization.
• Isolation prevents ground loops and electrical hazards.
• Modulation helps transmit signals over long distances without loss.

Key Techniques in Signal Conditioning

1. Amplification

Amplification increases the strength (voltage/current) of a weak signal to a usable level.

Types of Amplifiers

How an Op-Amp Works

An operational amplifier (Op-Amp) is a high-gain electronic amplifier used in feedback configurations for:

• Non-inverting amplifier (gain = 1 + R₂/R₁)
• Inverting amplifier (gain = -R₂/R₁)
• Differential amplifier (gain = R₂/R₁)

graph TD
    A["Input Signal (V_in)"] --> B["Op-Amp"]
    B --> C["Feedback Network (R1, R2)"]
    C --> D["Output Signal (V_out)"]
    D -->|"V_out = A_v * (V+ - V-)"| E["Amplified Signal"]

Worked Example: Amplifying a Thermocouple Signal

A thermocouple outputs 10 mV/°C, but the ADC requires 0–5 V input.

• Required gain = 5 V / (10 mV × 100°C) = 500 (for 100°C range).
• Circuit: Use an instrumentation amplifier with a gain of 500.

Real-world tie-in: In Nepal’s NTC (Nepal Telecommunications Corporation), signal amplifiers are used in fiber-optic communication systems to boost weak optical signals before conversion to electrical signals for processing.

2. Filtering

Filters remove unwanted frequencies (noise) while preserving the desired signal.

Types of Filters

Active vs. Passive Filters

Worked Example: Removing 50 Hz Noise in a Sensor Signal

A strain gauge signal has a 50 Hz power line interference.

• Solution: Use a notch filter centered at 50 Hz.
• Circuit: A twin-T notch filter or an active filter with an Op-Amp.

Real-world tie-in: Khalti’s payment processing system uses low-pass filters to smooth out high-frequency noise in transaction data before storing it in databases.

3. Isolation

Isolation prevents electrical interference between measurement systems and power sources.

Methods of Isolation

Why Isolation Matters

• Prevents ground loops (e.g., in automotive sensors).
• Protects sensitive equipment from high-voltage spikes.
• Ensures safety in medical and industrial applications.

Real-world tie-in: Pathao’s ride-hailing app uses isolated signal conditioning in its GPS modules to prevent interference from the vehicle’s electrical system, ensuring accurate location tracking.

4. Linearization

Many sensors (e.g., thermistors, RTDs) have nonlinear output. Linearization converts this into a linear relationship for easier processing.

Methods of Linearization

Worked Example: Linearizing a Thermistor

A thermistor’s resistance follows: $$R(T)=R_0{e}^{B(1/T-1/T_0)}$$

• Solution: Use a lookup table in software to map resistance to temperature linearly.

Real-world tie-in: Nepal’s NEPSE (Nepal Stock Exchange) uses linearized sensors in humidity and temperature monitoring of server rooms to ensure stable trading conditions.

5. Modulation

Modulation converts low-frequency signals into high-frequency carriers for long-distance transmission without loss.

Types of Modulation

Worked Example: Transmitting a Strain Gauge Signal Over 1 km

• Problem: Strain gauge output (0–10 mV) degrades over long cables.
• Solution: Use FM modulation to encode the signal onto a 1 MHz carrier, then demodulate at the receiver.

Real-world tie-in: Daraz’s warehouse automation uses PWM-based signal conditioning to control robotic arms in inventory management, ensuring precise motor movements.

Signal Conditioning Circuits in Practice

Instrumentation Amplifier Circuit

graph TD
    A["V_in+"] --> B["Op-Amp 1"]
    C["V_in-"] --> D["Op-Amp 2"]
    B --> E["Differential Amplifier"]
    D --> E
    E --> F["Op-Amp 3 (Gain Stage)"]
    F --> G["V_out = A*(V_in+ - V_in-)"]

Active Low-Pass Filter (1st Order)

graph TD
    A["Input Signal"] --> B["Resistor (R)"]
    B --> C["Output"]
    B --> D["Capacitor (C) to Ground"]
    C -->|"V_out = V_in * (1 / (1 + jωRC))"| E["Filtered Signal"]

In the Real World

1. eSewa (Digital Payment System)

   • Uses signal isolation in its payment terminals to prevent electrical interference from power surges, ensuring secure transactions.
   • Filtering removes high-frequency noise in payment data to avoid errors in fund transfers.

2. Ncell’s 4G/5G Base Stations

   • Amplifiers boost weak cellular signals before transmission.
   • Modulation (OFDM) is used to encode data for high-speed internet in smartphones.

3. Kathmandu Traffic Management System

   • Inductive loop sensors (for traffic counting) use signal conditioning to:
     • Amplify weak magnetic signals from vehicles.
     • Filter out noise from road vibrations.
     • Linearize the output for accurate traffic density calculations.

Exam Tip

What Examiners Look For

✅ Understand the purpose of each conditioning technique (amplification, filtering, isolation, etc.). ✅ Draw and explain circuits (e.g., Op-Amp configurations, filter designs). ✅ Apply concepts to real-world problems (e.g., "How would you condition a signal from a bridge strain gauge?"). ✅ Compare methods (e.g., active vs. passive filters, hardware vs. software linearization). ✅ Calculate gains, cutoff frequencies, and noise rejection ratios in numerical problems.

Common Mistakes to Avoid

❌ Assuming all amplifiers are the same (differentiate between instrumentation, Op-Amp, differential). ❌ Ignoring noise sources (always consider power line interference, electromagnetic noise). ❌ Forgetting units in calculations (e.g., Hz for filters, V/V for gain). ❌ Overcomplicating answers—examiners prefer clear, step-by-step reasoning.

Final Checklist Before the Exam

• Can you sketch an instrumentation amplifier and label its components?
• Do you know the difference between a low-pass and high-pass filter?
• Can you explain how isolation protects a measurement system?
• Are you comfortable linearizing a nonlinear sensor mathematically?
• Can you design a simple filter circuit for a given noise frequency?

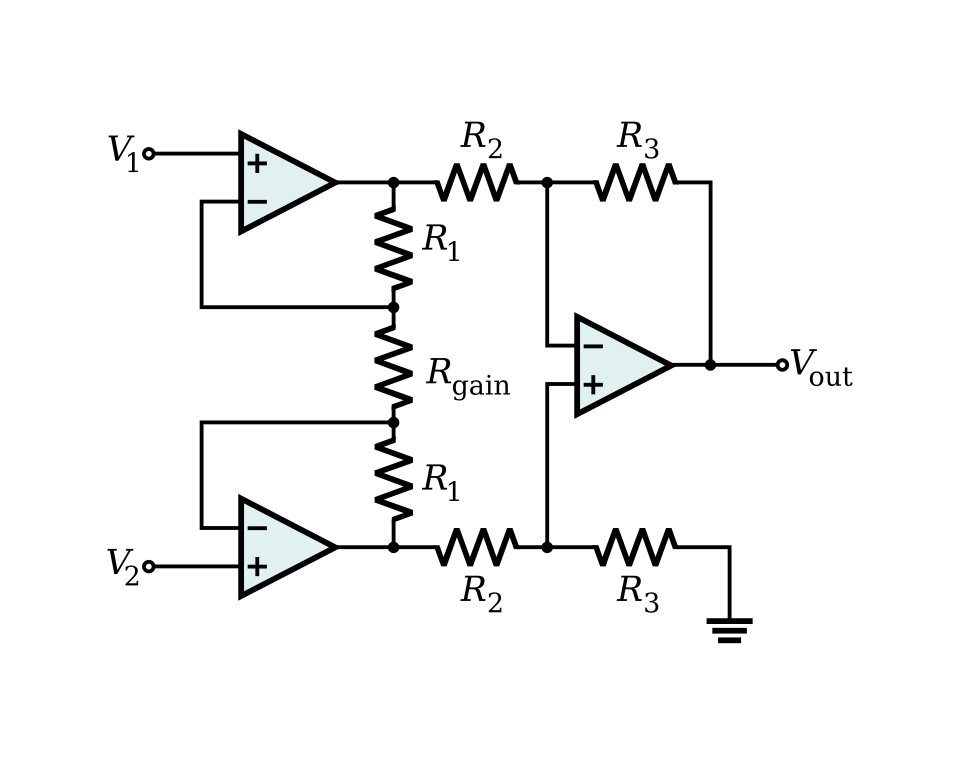

Op-Amp pin configuration (V+, V-, output, power pins) (Image: Aflafla1, CC BY-SA 3.0, via Wikimedia Commons) RC low-pass filter with Op-Amp (Image: Public domain, via Wikimedia Commons) Three Op-Amp instrumentation amp configuration (Image: Inductiveload, Public domain, via Wikimedia Commons)
