Classical & Symmetric Cryptography: Ciphers, AES, DES, Block vs Stream Modes

Core Concepts: What Is Cryptography?

Cryptography is the science of securing information by transforming it into an unreadable format (ciphertext) using mathematical algorithms. Symmetric cryptography uses a single shared key for both encryption and decryption, making it fast but vulnerable if the key is compromised.

Classical Ciphers: The Birth of Cryptography

Classical ciphers are manual substitution/transposition techniques used before computers. They rely on human effort to break, not computational power.

1. Substitution Ciphers

Replace each plaintext character with another (e.g., A→D, B→E).

• Caesar Cipher: Shifts letters by a fixed number (e.g., shift=3: A→D, B→E).

  flowchart TD
    A["Plaintext: ATTACKATDAWN"] --> B["Shift +3: DWWDFNDWDZQ"]
    B --> C["Key: 3"]

• Vigenère Cipher: Uses a keyword to vary the shift per character.
  • Example: Key = "KEY", Plaintext = "ATTACK":

    A T T A C K
    K E Y K E Y
    D W W D F N


  • Why it’s stronger: Resists frequency analysis better than Caesar.

2. Transposition Ciphers

Reorder characters without substitution (e.g., rail fence cipher).

• Example: Plaintext = "HELLO", Key = 2 rails:

  H   E   L   L   O
  E L L O H
  → "HELLO" → "HELLO" (reordered: HELLO → HELO L)


3. Playfair Cipher

Encrypts digraphs (2-letter pairs) using a 5×5 matrix.

• Example: Key = "MONARCHY", Plaintext = "HELLO":

  M O N A R
  C H Y B D
  E L L O → "BM OD" (substituted pairs)

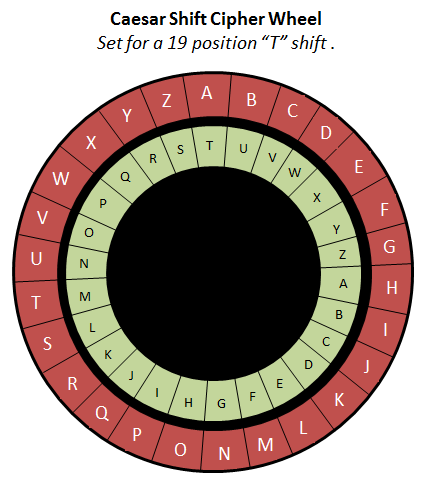

A physical device used to encode/decode Caesar shifts by rotating letters. (Image: Armchair, CC BY-SA 4.0, via Wikimedia Commons)

Modern Symmetric Cryptography: AES, DES, and Beyond

Classical ciphers are broken by computers—modern symmetric encryption uses algorithms (AES, DES) and modes of operation (ECB, CBC, CFB).

1. Block Ciphers: AES and DES

Block ciphers split plaintext into fixed-size blocks (e.g., 64-bit for DES, 128-bit for AES) and encrypt each block.

AES (Advanced Encryption Standard)

• Block size: 128 bits.
• Key sizes: 128, 192, or 256 bits.
• Rounds: 10 (128-bit key), 12 (192-bit), or 14 (256-bit).
• Operations per round:
  • SubBytes (non-linear substitution)
  • ShiftRows (permutation)
  • MixColumns (linear mixing)
  • AddRoundKey (XOR with key)

DES (Data Encryption Standard)

• Block size: 64 bits (but only 56 bits are key bits).
• Key size: 56 bits (now obsolete due to brute-force attacks).
• Rounds: 16 (Feistel network structure).

Comparison Table: AES vs. DES

2. Modes of Operation: How Blocks Are Encrypted

Modes define how block ciphers handle multiple blocks and errors.

ECB (Electronic Codebook)

• Encrypts each block independently.
• Problem: Identical plaintext blocks → identical ciphertext (visible patterns).

  flowchart TD
    P1["Block 1"] --> E1["ECB Encrypt"]
    P2["Block 2"] --> E2["ECB Encrypt"]
    E1 --> C1["Ciphertext 1"]
    E2 --> C2["Ciphertext 2"]

CBC (Cipher Block Chaining)

• XORs each plaintext block with the previous ciphertext block before encryption.
• Requires: Initialization Vector (IV) for the first block.
• Advantage: Hides patterns (avalanche effect).

  flowchart TD
    IV["IV"] --> XOR1["XOR P1"]
    XOR1 --> E1["Encrypt"]
    E1 --> C1["Ciphertext 1"]
    C1 --> XOR2["XOR P2"]
    XOR2 --> E2["Encrypt"]
    E2 --> C2["Ciphertext 2"]

CFB (Cipher Feedback) and OFB (Output Feedback)

• Treat block cipher as a stream cipher (good for real-time data like video).
• CFB: Encrypts previous ciphertext block, XORs with plaintext.
• OFB: Generates a keystream independently (better error resilience).

Real-World Applications

1. eSewa and Khalti (Nepal)

• What they use: AES-256 in CBC mode to encrypt payment data (card numbers, OTPs).
• How it works:
  • When you pay via Khalti, your card details are split into 128-bit blocks, encrypted with AES, and sent to the bank’s server.
  • The bank’s server decrypts using the same shared key (symmetric).
• Why symmetric? Speed: AES is 1000x faster than public-key crypto for bulk data.

2. WhatsApp End-to-End Encryption

• What they use: AES-256 in CFB mode for message encryption.
• How it works:
  • Your phone generates a one-time key, encrypts the message with AES-CFB, and sends it.
  • The recipient’s phone uses the same key to decrypt.
  • Key exchange: Uses Signal Protocol (public-key crypto) to securely share the AES key.

3. Bank ATMs and Loan Interest Calculations

• What they use: 3DES (Triple DES) for PIN encryption (legacy systems).
• How it works:
  • When you enter a PIN, it’s encrypted with 3DES (DES applied 3× with different keys) and sent to the bank.
  • Worked Example: If your loan interest is calculated monthly with compounding, the bank’s server uses AES to encrypt your transaction logs to prevent tampering.
  • Formula: $$A=P{\left(1+\frac{r}{n}\right)}^{nt}$$
    • Here, P (principal) and r (rate) are stored encrypted with AES-128.

Strengths and Weaknesses

Key Distribution Problem:

• If Alice and Bob share a key via email, an attacker (Eve) can intercept it.
• Solution: Use asymmetric crypto (Unit 3) to exchange the symmetric key securely.

Worked Example: Encrypting "HELLO" with AES-128 in ECB Mode

1. Plaintext: H E L L O → Convert to binary:

   H: 01001000, E: 01000101, L: 01001100, L: 01001100, O: 01001111


2. Pad to 128 bits: Add null bytes (PKCS#7 padding):

   01001000 01000101 01001100 01001100 01001111 00000000 00000000 00000000


3. Encrypt with AES-128:
   • Apply 10 rounds of SubBytes, ShiftRows, MixColumns, AddRoundKey.
   • Output (example ciphertext):

     3AD77BB40D7A3660A89BCF8FFAAF3692


4. Decrypt: Reverse the process with the same key.

Common Attacks on Symmetric Crypto

Exam Tip: How This Unit Is Tested

1. Definitions (5 marks):

   • Explain substitution vs. transposition ciphers.
   • Define block cipher, mode of operation, and Feistel network.

2. Worked Examples (10 marks):

   • Encrypt/decrypt a short message using Caesar, Vigenère, or Playfair.
   • Trace one round of AES (show SubBytes, ShiftRows).
   • Calculate padding for AES (PKCS#7).

3. Comparisons (5 marks):

   • Compare AES vs. DES (block size, key size, security).
   • Compare ECB vs. CBC (patterns, IV usage).

4. Real-World Applications (5 marks):

   • Explain how Khalti uses AES for payments.
   • Describe WhatsApp’s use of CFB mode.

5. Attacks (5 marks):

   • Explain frequency analysis (classical ciphers).
   • Describe brute-force limits for AES-128.

Pro Tip:

• Memorize AES rounds: SubBytes → ShiftRows → MixColumns → AddRoundKey.
• Draw diagrams: Always sketch CBC chaining or AES rounds in exams.
• Link to real systems: Mention TLS (Unit 6) uses AES for encrypting web traffic.

mindmap
  root((Symmetric Cryptography))
    Classical Ciphers
      Caesar["Caesar: Shift by N"]
      Vigenère["Vigenère: Keyword-based shift"]
      Playfair["Playfair: 5×5 matrix digraphs"]
    Modern Block Ciphers
      DES["DES: 56-bit, 16 rounds"]
      AES["AES: 128/192/256-bit, SubBytes+ShiftRows"]
    Modes of Operation
      ECB["ECB: Independent blocks (insecure)"]
      CBC["CBC: Chaining with IV"]
      CFB["CFB: Stream-like feedback"]
    Attacks
      BruteForce["Brute force: 2^128 for AES"]
      KnownPlaintext["Known plaintext → key deduction"]
    Real-World
      Khalti["AES-256 for payments"]
      WhatsApp["CFB mode for messages"]
