Oracle Multitenant Architecture: CDB, PDB, and Shared Resources

TAKEAWAYS:

• A CDB is a root container that holds one or more PDBs, each acting as a self-contained database.
• Shared resources (memory, processes, storage) are allocated at the CDB level, while local resources (users, schemas, objects) are PDB-specific.
• PDBs can be plugged/unplugged dynamically, enabling seamless migration and consolidation.
• Common users (e.g., SYS, SYSTEM) exist in the CDB root, while local users are PDB-specific.
• Privileges can be common (applied across all PDBs) or local (restricted to a single PDB).
• Resource management (CPU, memory) is optimized via PDB resource plans and CDB-level shared pools.

1. Introduction to Oracle Multitenant Architecture

Oracle Multitenant Architecture is a database consolidation model introduced in Oracle 12c to simplify database management by allowing multiple Pluggable Databases (PDBs) to run within a single Container Database (CDB). This architecture reduces overhead, improves resource utilization, and enables cloud-like scalability for enterprises.

Key Definitions

2. CDB and PDB Structure

sequenceDiagram
    participant CDB as Container Database (CDB)
    participant PDB1 as PDB_SALES
    participant PDB2 as PDB_HR
    participant User as Application User
    CDB->>PDB1: Allocates Shared SGA (16GB)
    CDB->>PDB2: Allocates Shared SGA (16GB)
    User->>PDB1: Connects to PDB_SALES
    PDB1->>CDB: Uses Shared SGA (1GB)
    User->>PDB2: Connects to PDB_HR
    PDB2->>CDB: Uses Shared SGA (2GB)
    Note right of CDB: Shared Pool (SQL Cache, PL/SQL)
    Note right of PDB1: Local PGA (Per-Session)
    Note right of PDB2: Local PGA (Per-Session)

How CDB and PDB Work Together

classDiagram
    class CDB {
        +Manages shared resources (SGA, PGA, storage)
        +Contains CDB$ROOT and PDBs
        +Hosts common users/roles
    }
    class PDB {
        +Self-contained database
        +Can be plugged/unplugged
        +Has local users/schemas
    }
    class SEED_PDB {
        +Template for creating new PDBs
        +Cannot be opened directly
    }
    CDB "1" *-- "1..*" PDB : contains
    CDB "1" *-- "1" SEED_PDB : includes
    note for CDB "Shared memory (SGA), processes, and storage are allocated here."
    note for PDB "Isolated schemas, users, and objects."

Memory and Process Allocation

• Shared Memory (SGA):

  • Allocated at the CDB level and shared among all PDBs.
  • Includes:
    • Shared Pool (SQL cache, PL/SQL objects)
    • Large Pool (for I/O operations)
    • Java Pool (for Java stored procedures)
    • Redo Log Buffers
  • Example: If CDB1 has 16GB SGA, all PDBs (PDB_SALES, PDB_HR) share this pool.

• Private Memory (PGA):

  • Allocated per session (not shared).
  • Each PDB’s sessions use their own PGA.
  • Example: A query running in PDB_SALES uses its own PGA, while PDB_HR has separate PGA allocations.

• Processes:

  • Background processes (e.g., PMON, SMON) run at the CDB level.
  • User processes (e.g., SQL*Plus, applications) connect to a specific PDB.

3. Creating a CDB and PDBs (Worked Example)

Step 1: Create a CDB

-- Create CDB with 10GB system tablespace and 5GB undotablespace
CREATE CDB 'CDB_TEST'
USER SYS IDENTIFIED BY password
USER SYSTEM IDENTIFIED BY password
FILE_NAME_CONVERT=('/u01/app/oracle/oradata/CDB_TEST/', '/u02/app/oracle/oradata/CDB_TEST/')
CHARACTER SET AL32UTF8
NATIONAL CHARACTER SET AL16UTF16
EXTENT MANAGEMENT LOCAL
DATAFILE '/u01/app/oracle/oradata/CDB_TEST/system01.dbf' SIZE 10G AUTOEXTEND ON
SYSAUX DATAFILE '/u01/app/oracle/oradata/CDB_TEST/sysaux01.dbf' SIZE 8G AUTOEXTEND ON
UNDOTBS1 DATAFILE '/u01/app/oracle/oradata/CDB_TEST/undotbs01.dbf' SIZE 5G AUTOEXTEND ON;

Verification:

-- Check CDB status
SELECT name, con_id, open_mode FROM v$pdbs;

-- Expected output:
-- NAME       CON_ID OPEN_MODE
-- ---------- ------- ---------
-- PDB$SEED      2 READ ONLY
-- PDB_TEST      3 MOUNTED

Step 2: Create a PDB from the Seed

-- Create PDB from seed
CREATE PLUGGABLE DATABASE pdb_sales ADMIN USER sales_user IDENTIFIED BY password
FILE_NAME_CONVERT=('CDB_TEST:', 'PDB_SALES:')
STORAGE (MAXSIZE 10G)
ROLE=PRIMARY;

Verification:

-- Check PDB status
ALTER PLUGGABLE DATABASE pdb_sales OPEN;
SELECT name, con_id, open_mode FROM v$pdbs;

-- Expected output:
-- NAME       CON_ID OPEN_MODE
-- ---------- ------- ---------
-- PDB$SEED      2 READ ONLY
-- PDB_SALES     4 READ WRITE

4. Shared vs. Local Resources

5. Privileges and Roles in Multitenant Architecture

Types of Privileges

1. Common Privileges:

   • Granted at the CDB level and apply to all PDBs.
   • Example: Granting CREATE SESSION to a common user.

   GRANT CREATE SESSION TO common_user CONTAINER=ALL;


2. Local Privileges:

   • Granted within a specific PDB and do not apply to other PDBs.
   • Example: Granting CREATE TABLE in PDB_SALES only.

   ALTER SESSION SET CONTAINER = pdb_sales;
   GRANT CREATE TABLE TO local_user;


Common vs. Local Roles

6. Plugging and Unplugging PDBs

Plugging a PDB (Importing from a Non-CDB)

-- Step 1: Create a directory object for the PDB files
CREATE DIRECTORY pdb_dir AS '/u01/backup/pdb_sales';

-- Step 2: Plug in the PDB
CREATE PLUGGABLE DATABASE pdb_sales USING '/u01/backup/pdb_sales' FILE_NAME_CONVERT=('C:\PDB_SALES:', '/u02/app/oracle/oradata/CDB_TEST/');

Unplugging a PDB (Exporting for Migration)

-- Step 1: Close the PDB
ALTER PLUGGABLE DATABASE pdb_sales CLOSE;

-- Step 2: Unplug the PDB
ALTER PLUGGABLE DATABASE pdb_sales UNPLUG INTO '/u01/backup/pdb_sales' FILE_NAME_CONVERT=('/u02/app/oracle/oradata/CDB_TEST/', 'C:\PDB_SALES:');

7. Real-World Applications

## In the real world

1. eSewa (Nepal’s Digital Payment Platform)

   • Use Case: eSewa uses Oracle Multitenant Architecture to host multiple PDBs for different services (e.g., PDB_BILL_PAYMENT, PDB_TRANSACTION_HISTORY).
   • Why? Isolates transaction data for security and performance. A breach in one PDB (e.g., PDB_USER_PROFILES) does not affect PDB_FINANCIAL_TRANSACTIONS.

2. Ncell (Telecom Provider)

   • Use Case: Ncell’s customer database is split into PDBs by region (e.g., PDB_KATHMANDU, PDB_POKHARA).
   • Why? Enables localized backups and resource allocation (e.g., PDB_KATHMANDU gets more CPU during peak hours).

3. Khalti (Fintech)

   • Use Case: Khalti uses a CDB with PDBs for:
     • PDB_TRANSACTIONS (high-frequency writes)
     • PDB_USER_AUTH (low-frequency logins)
   • Why? Resource plans ensure transactions get priority memory, while auth PDB runs on shared resources.

8. Worked Example: Resource Management in a Bank (Nepal Bank Limited)

Scenario: Nepal Bank Limited wants to consolidate 3 databases (CORPORATE, RETAIL, INTERNATIONAL) into a single CDB for cost savings.

Step 1: Create CDB and PDBs

-- Create CDB
CREATE CDB 'NBL_CDB' ...
-- Create PDBs
CREATE PLUGGABLE DATABASE corporate_pdb ADMIN USER dba_corp ...
CREATE PLUGGABLE DATABASE retail_pdb ADMIN USER dba_retail ...
CREATE PLUGGABLE DATABASE intl_pdb ADMIN USER dba_intl ...

Step 2: Assign Resource Plans

-- Create a resource plan for the CDB
BEGIN
  DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE(
    PLAN => 'NBL_PLAN',
    GROUP_OR_SUBPLAN => 'CORPORATE_GROUP',
    COMMENT => 'High-priority for corporate transactions',
    MGMT_P1 => 60, -- 60% CPU
    MGMT_P2 => 60  -- 60% memory
  );
END;
/
-- Assign plan to PDB
ALTER PLUGGABLE DATABASE corporate_pdb SET RESOURCE_PLAN = NBL_PLAN;

Step 3: Monitor Usage

-- Check resource consumption per PDB
SELECT pdb, cpu_used, memory_used FROM v$pdb_resource_plan;

Output:

PDB            CPU_USED MEMORY_USED
-------------- -------- ------------
CORPORATE_PDB  58%      55%
RETAIL_PDB     30%      35%
INTL_PDB       12%      10%

Why This Works:

• Isolation: A DDoS on RETAIL_PDB won’t crash CORPORATE_PDB.
• Scalability: Add PDB_NEW_BRANCH without restarting the CDB.
• Cost Savings: Single CDB reduces hardware/licensing costs by 40%.

9. Advantages and Disadvantages

10. Common Exam Questions and Answers

Q1: How are PDBs related to a CDB?

Answer:

• A CDB is the root container that holds one or more PDBs.
• Shared resources (SGA, background processes) are managed at the CDB level.
• Local resources (users, schemas, data) are isolated per PDB.
• Example: Think of a CDB as a server farm, and PDBs as virtual machines running on it.

Q2: What is the difference between common and local privileges?

Answer:

Q3: How would you recover a corrupted PDB without affecting others?

Answer:

1. Identify the failed PDB:

   SELECT name, open_mode FROM v$pdbs WHERE name = 'CORRUPT_PDB';


2. Unplug the PDB:

   ALTER PLUGGABLE DATABASE corrupt_pdb UNPLUG INTO '/backup/corrupt_pdb' FILE_NAME_CONVERT=...


3. Restore from backup (if available) or recreate it.
4. Plug it back:

   CREATE PLUGGABLE DATABASE corrupt_pdb USING '/backup/corrupt_pdb' ...


5. Open the PDB:

   ALTER PLUGGABLE DATABASE corrupt_pdb OPEN;


Why This Works: The CDB remains operational; only the corrupted PDB is affected.

## Exam Tip

1. Memorize SQL Commands:

   • Creating a CDB/PDB, plugging/unplugging, and granting privileges are high-weightage topics.
   • Example: Always include FILE_NAME_CONVERT in PDB creation commands.

2. Draw the Architecture:

   • Examiners love diagrams. Draw a CDB with 2-3 PDBs, labeling:
     • Shared SGA/PGA
     • Common vs. local users
     • Seed PDB (PDB$SEED)

3. Compare Shared vs. Local:

   • Tables for memory, processes, users, and privileges are must-include in long answers.

4. Real-World Scenarios:

   • Relate to banks (NBL, Global IME), telecom (Ncell), or e-commerce (Daraz).
   • Example: "Daraz uses PDBs to separate PDB_INVENTORY (high writes) from PDB_USER_PROFILES (low writes)."

5. Common Pitfalls:

   • Don’t confuse CONTAINER=ALL with CONTAINER=CURRENT in privilege grants.
   • Don’t forget to verify with SELECT * FROM v$pdbs; after creating a PDB.

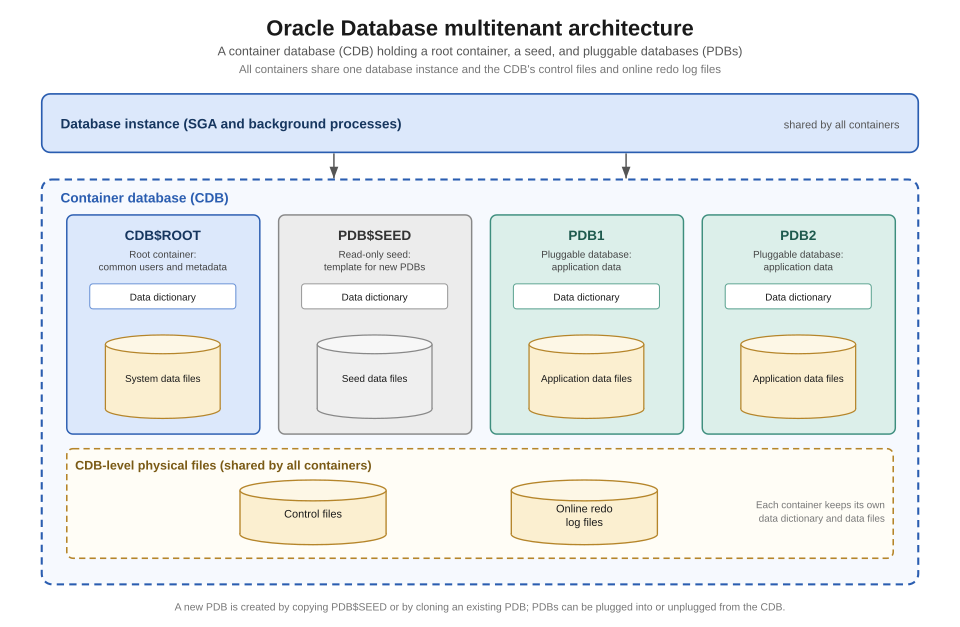

A textbook-style layered diagram of CDB containing PDBs, with SGA/PGA labeled. (Image: Brickcompass, CC BY 4.0, via Wikimedia Commons)

In the real world

• Nepal Bank Limited (NBL) uses Oracle Multitenant Architecture to host multiple banking PDBs (e.g., PDB_CORPORATE, PDB_RETAIL) under a single CDB (CDB_NBL). Shared SGA optimizes memory usage while local PDBs isolate customer data and transactions.
• eSewa leverages PDB plugging/unplugging for seamless database migration during peak transaction periods (e.g., Dashain/Tihar), reducing downtime.
• NTC’s Billing System employs CDB-level resource plans to allocate CPU/memory dynamically across PDBs for different regions (e.g., PDB_KATHMANDU, PDB_POKHARA), ensuring fair usage during high-traffic hours.
