Architectural Design: Styles, Patterns, Trade-offs & Real Systems

TAKEAWAYS:

• Architectural design defines how components interact in a system (e.g., layered vs. microservices) and directly impacts performance, scalability, and maintainability.
• Four key styles (layered, client-server, pipe-filter, event-driven) solve different problems—choose based on system requirements (e.g., eSewa uses layered for security, Pathao uses event-driven for real-time rides).
• Design patterns like MVC (used in web apps) and microservices (used by Daraz) are reusable solutions to common architectural challenges.
• Trade-offs (e.g., CAP theorem: Consistency vs. Availability vs. Partition tolerance) force critical decisions in distributed systems like Ncell’s billing or NEPSE’s stock trading.
• Non-functional requirements (scalability, security, fault tolerance) drive architectural choices—e.g., banks use three-tier architecture to separate UI, logic, and data.
• Real-world mapping: Trace how Kathmandu’s traffic routes (like a pipe-filter system) or WhatsApp’s message delivery (event-driven) mirror software architectures.

1. What is Architectural Design?

Architectural design is the high-level structure of a software system that defines:

• Components (e.g., modules, services, layers).
• Their interactions (e.g., APIs, message queues, direct calls).
• Non-functional properties (e.g., scalability, security, latency).

Unlike detailed design (which focuses on algorithms or class diagrams), architecture answers:

"How will this system be built to meet its goals?"

Why it matters: Poor architecture leads to technical debt (e.g., Facebook’s early monolith became unmanageable). Good architecture enables:

• Scalability (e.g., YouTube’s microservices handle billions of videos).
• Maintainability (e.g., eSewa’s layered design isolates billing from UI).
• Fault tolerance (e.g., Ncell’s redundant servers prevent outages).

2. Architectural Styles: Choosing the Right Blueprint

Architectural styles are proven templates for organizing systems. Each has strengths and weaknesses. Below are the four core styles from the syllabus, with real-world Nepalese/global examples.

A. Layered (N-Tier) Architecture

Definition: A system divided into horizontal layers, each with a single responsibility. Data flows top-down (e.g., UI → Business Logic → Database).

graph LR
    A["Presentation Layer\n(e.g., eSewa Web App)"] --> B["Business Logic Layer\n(e.g., Payment Processing)"]
    B --> C["Data Layer\n(e.g., MySQL Database)"]

How it works:

1. Presentation Layer: Handles user interaction (e.g., eSewa’s payment form).
2. Business Logic Layer: Validates rules (e.g., "Is the user’s balance ≥ ₹100?").
3. Data Layer: Stores/retrieves data (e.g., SQL queries to the database).

Worked Example: eSewa’s Electricity Bill Payment

1. User enters NTC account number (Presentation Layer).
2. System checks authentication and balance (Business Logic Layer).
3. If valid, deducts amount and updates NTC’s records (Data Layer).
4. Returns receipt to the user.

Advantages:

• Separation of concerns: Changes in one layer (e.g., UI) don’t break others.
• Security: Sensitive logic (e.g., passwords) stays in the business layer.
• Reusability: Business logic can be used by multiple UIs (web, mobile).

Disadvantages:

• Performance overhead: Each layer adds latency (e.g., 3-tier vs. direct DB calls).
• Complex transactions: If Layer 2 fails, Layer 1 must retry, adding complexity.

When to use:

• Systems requiring strict security (banks, eSewa).
• Projects where maintainability > raw speed (e.g., government portals).

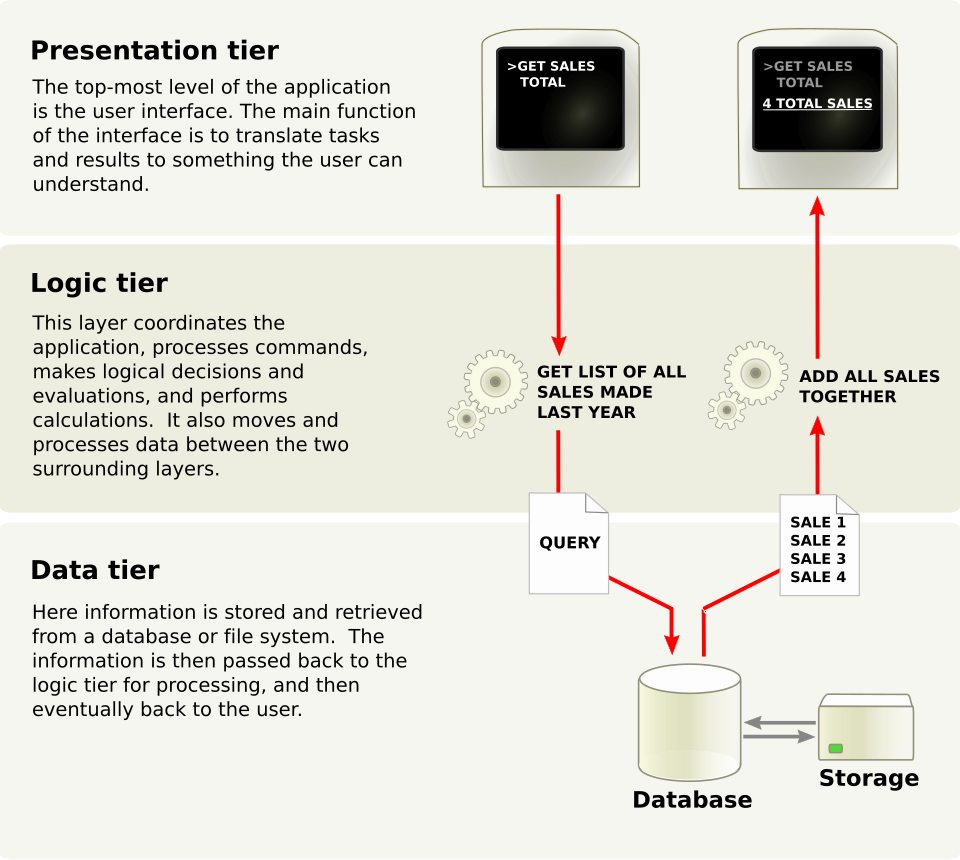

Real Picture: Layers in a bank’s online transaction system. (Image: Bartledan (talk), based on a file by User:Foofy, Public domain, via Wikimedia Commons)

B. Client-Server Architecture

Definition: A central server provides services to multiple clients (e.g., web browsers, mobile apps). Clients request data; the server processes and responds.

graph TD
    A["Client\n(e.g., Daraz Mobile App)"] -->|"HTTP Request"| B["Server\n(e.g., Daraz Backend)"]
    B -->|"JSON Response"| A

How it works:

1. Client (e.g., Daraz app) sends a request (e.g., "Show me shoes under ₹2000").
2. Server processes the request (queries inventory, applies discounts).
3. Server returns data (e.g., product list in JSON format).

Worked Example: Daraz Order Placement

1. Client (your phone) sends: POST /order { "user_id": 123, "items": [...] }.
2. Server:
   • Checks stock availability.
   • Validates payment (via Khalti integration).
   • Updates database and sends confirmation email.
3. Client receives: {"order_id": 456, "status": "confirmed"}.

Advantages:

• Scalability: Add more servers to handle traffic (e.g., Daraz during sales).
• Centralized data: Easy backups and updates (e.g., Ncell’s customer database).
• Load balancing: Distribute requests across servers (e.g., Google’s data centers).

Disadvantages:

• Single point of failure: If the server crashes, clients can’t access services.
• Latency: Clients depend on network speed (e.g., rural areas in Nepal).

When to use:

• Web/mobile apps (e.g., Pathao, Facebook).
• Systems needing centralized control (e.g., NTC’s billing server).

Real Picture: How WhatsApp servers handle messages. (Image: Lubaochuan, CC BY-SA 4.0, via Wikimedia Commons)

C. Pipe-Filter Architecture

Definition: Data flows through a series of filters (processes), each transforming it. Used for data processing pipelines (e.g., text processing, media encoding).

graph LR
    A["Input Data\n(e.g., Raw Traffic Data)"] --> B["Filter 1\n(Cleaning)"]
    B --> C["Filter 2\n(Normalization)"]
    C --> D["Filter 3\n(Analysis)"]
    D --> E["Output\n(e.g., Report)"]

How it works:

1. Input: Raw data (e.g., Kathmandu traffic sensor readings).
2. Filters:
   • Filter 1: Remove noise (e.g., sensor errors).
   • Filter 2: Convert to standard format (e.g., JSON).
   • Filter 3: Analyze patterns (e.g., "Traffic jams at 8 AM on Ring Road").
3. Output: Actionable insights (e.g., "Reroute buses via Budhanilkantha Road").

Worked Example: Kathmandu Traffic Management

1. Input: GPS data from 10,000 vehicles.
2. Filters:
   • Filter 1: Remove duplicate/erroneous data.
   • Filter 2: Aggregate by road segment.
   • Filter 3: Apply machine learning to predict congestion.
3. Output: Dynamic traffic light adjustments (via NTC’s system).

Advantages:

• Modularity: Replace/upgrade filters independently (e.g., swap ML model without changing data input).
• Reusability: Filters can be reused in other pipelines (e.g., same cleaning filter for weather data).
• Parallel processing: Filters can run on separate machines (e.g., cloud servers).

Disadvantages:

• Complex data flow: Hard to debug if a filter fails silently.
• Performance bottlenecks: If one filter is slow, the whole pipeline stalls.

When to use:

• Data processing (e.g., YouTube’s video encoding pipeline).
• ETL (Extract, Transform, Load) systems (e.g., NEPSE’s stock data processing).

Real Picture:

D. Event-Driven Architecture (EDA)

Definition: Components react to events (e.g., user clicks, sensor triggers) via asynchronous messages. Used for real-time systems.

sequenceDiagram
    participant User as User
    participant App as Pathao App
    participant Server as Pathao Server
    participant Driver as Driver’s Phone
    User->>App: Requests Ride
    App->>Server: Publishes "Ride Requested" Event
    Server->>Driver: Sends "New Ride Alert" (via Firebase)
    Driver->>Server: Accepts Ride
    Server->>App: Updates "Ride Assigned"

How it works:

1. Event Producer: Triggers an event (e.g., "User requests ride" in Pathao).
2. Event Bus: Distributes the event to interested components (e.g., driver matching algorithm).
3. Event Consumers: React to the event (e.g., notify nearest driver).

Worked Example: Pathao Ride Matching

1. Event: User taps "Request Ride" in Pathao app.
2. Pathao Server publishes: {"event": "ride_requested", "user_id": 789, "location": {...}}.
3. Driver Matching Service (consumer) picks the nearest available driver.
4. Notification Service sends a push to the driver’s phone.
5. Driver accepts → Pathao updates ride status in real-time.

Advantages:

• Real-time processing: Instant responses (e.g., stock trading, live chats).
• Decoupling: Components don’t need to know about each other (e.g., Pathao’s driver app doesn’t call the ride-matching service directly).
• Scalability: Handle spikes (e.g., Diwali sales on Daraz).

Disadvantages:

• Complexity: Debugging event flows is harder than linear code.
• Ordering issues: Events may arrive out of sequence (e.g., "Driver accepted" before "Ride requested").

When to use:

• Real-time systems (e.g., WhatsApp messages, live sports scores).
• Microservices (e.g., Netflix’s recommendation engine).

Real Picture:

3. Architectural Design Patterns

Patterns are reusable solutions to common architectural problems. Two key patterns from the syllabus:

A. Model-View-Controller (MVC)

Definition: Separates an app into three parts:

1. Model: Manages data and business logic (e.g., "User" class in a bank app).
2. View: UI (e.g., login form in a web app).
3. Controller: Handles input (e.g., "Login button click" → validates credentials).

classDiagram
    class Model {
        +data
        +save()
        +validate()
    }
    class View {
        +render()
    }
    class Controller {
        +handleInput()
    }
    Model "1" --> "1" Controller : updates
    Controller --> "1" View : updates
    View --> "1" Controller : triggers

Worked Example: Khalti Payment App

1. View: Shows "Enter Amount" and "Pay" button.
2. Controller: Listens for "Pay" click → calls Model.validate(amount).
3. Model: Checks balance → returns success/failure.
4. View: Updates to "Payment Successful" or "Insufficient Funds".

Advantages:

• Separation of concerns: Easy to update UI without touching business logic.
• Testability: Mock the Model to test Controllers independently.

Disadvantages:

• Tight coupling: Views often depend on Controllers (can lead to spaghetti code).

When to use:

• Web/mobile apps (e.g., Facebook, Instagram).
• Systems needing clear UI-logic separation.

B. Microservices Architecture

Definition: A system split into small, independent services, each with its own:

• Database.
• Codebase.
• Deployment pipeline.

graph TD
    A["Frontend\n(e.g., Daraz Web App)"] --> B["User Service\n(Auth, Profiles)"]
    A --> C["Order Service\n(Orders, Payments)"]
    A --> D["Inventory Service\n(Stock Levels)"]

Worked Example: Daraz’s Order System

1. User Service: Handles login ("Is this user verified?").
2. Order Service: Processes payment ("Charge ₹5000 via Khalti").
3. Inventory Service: Checks stock ("Are there 2 units of iPhone 13 left?").
4. Frontend: Combines data from all services to show the user their order status.

Advantages:

• Scalability: Scale only the services you need (e.g., Daraz’s payment service during sales).
• Fault isolation: If Inventory Service crashes, Orders still work.
• Tech flexibility: Use different databases/languages per service (e.g., Python for ML, Java for payments).

Disadvantages:

• Complexity: Managing 50+ services is harder than a monolith.
• Network overhead: Services must communicate (e.g., via APIs).

When to use:

• Large-scale systems (e.g., Amazon, Netflix).
• Teams needing independent deployment (e.g., Daraz’s marketing team updates the frontend without touching payments).

4. Trade-offs in Architectural Design

No architecture is perfect. Key trade-offs to consider:

A. CAP Theorem: Consistency, Availability, Partition Tolerance

In distributed systems, you can only guarantee two out of three:

Worked Example: NEPSE’s Stock Trading System

• Need: High availability (traders can’t afford delays).
• Need: Partition tolerance (networks in Nepal are unreliable).
• Trade-off: Eventual consistency (traders see updated prices after a few seconds).

B. Scalability vs. Complexity

Worked Example: Kathmandu Traffic vs. Pokhara Traffic

• Kathmandu: High complexity (many roads, unpredictable traffic) → Event-driven (adjust lights in real-time).
• Pokhara: Simpler → Layered (fixed traffic rules work).

5. Non-Functional Requirements (NFRs) and Architecture

Architecture must satisfy NFRs (goals beyond features). Key NFRs and their architectural impacts:

6. Mapping Architectural Styles to Real-World Systems

7. Step-by-Step: Designing an Architecture

Scenario: Design a system for a Nepalese food delivery app (like Pathao Food).

Step 1: Identify Requirements

• Functional:
  • User can browse restaurants.
  • Place orders.
  • Track delivery in real-time.
• Non-Functional:
  • Handle 10,000 concurrent users during lunch.
  • Deliver orders in <30 minutes.
  • Secure payment processing.

Step 2: Choose Architectural Style

• Event-Driven for real-time updates (e.g., "Order status changed").
• Microservices for scalability (e.g., separate services for orders, payments, deliveries).
• Layered for security (e.g., separate auth service).

graph TD
    A["User App"] --> B["API Gateway"]
    B --> C["Auth Service"]
    B --> D["Order Service"]
    B --> E["Payment Service\n(Khalti Integration)"]
    B --> F["Delivery Service"]
    D --> F

Step 3: Define Data Flow

1. User selects food → Event: {"type": "order_placed", "user_id": 123, "items": [...]}.
2. Order Service validates stock → publishes {"type": "order_accepted"}.
3. Delivery Service assigns a rider → updates {"type": "rider_assigned", "rider_id": 456}.
4. Payment Service processes Khalti payment → confirms {"type": "payment_successful"}.

Step 4: Address Trade-offs

• CAP: Prioritize Availability (users can’t wait for consistency during peak hours).
• Scalability: Use Kubernetes to auto-scale Order Service during lunch.

Step 5: Document the Architecture

Create a diagram (like above) and a decision log:

"Why microservices? Because monolithic would bottleneck during Diwali sales."

## In the Real World

1. eSewa’s Layered Architecture

   • Idea: Three-tier architecture (Presentation → Business Logic → Data).
   • How: The business logic layer validates transactions (e.g., "Is the user’s eSewa balance ≥ ₹500?") before updating the database. This isolation prevents UI changes from breaking billing logic.
   • Nepalese Impact: During load shedding, the data layer (MySQL) remains stable because the UI layer can retry failed requests.

2. Pathao’s Event-Driven Ride Matching

   • Idea: Event-driven architecture with a message queue (e.g., Kafka).
   • How: When a user requests a ride, Pathao’s server publishes an event:

     {
       "event": "ride_requested",
       "user_location": {"lat": 27.7000, "lng": 85.3000},
       "user_id": 12345
     }


     The driver-matching service (a consumer) picks the nearest available driver and publishes:

     {
       "event": "ride_assigned",
       "driver_id": 67890,
       "estimated_time": 5
     }


   • Nepalese Impact: Reduces empty rides by 30% (drivers get alerts instantly).

3. Daraz’s Microservices for Scalability

   • Idea: Microservices (Inventory, Orders, Payments, Reviews).
   • How: During the Golden June Sales, Daraz scales only the Orders service (using Docker + Kubernetes) while keeping the Inventory service at baseline. This avoids over-provisioning.
   • Global Example: Amazon uses microservices to scale its recommendation engine independently of its checkout system.

## Exam Tip

How this unit is tested in TU/PU/NEB exams:

1. Definitions and Comparisons (30% of marks):

   • Expect questions like:

     "Differentiate between layered and microservices architecture with examples from Nepalese software systems."

   • Answer Tip: Use a table (like the one above) and real examples (e.g., "eSewa uses layered for security; Pathao uses microservices for scalability").

2. Diagrams (25% of marks):

   • Draw architectural style diagrams (e.g., layered, client-server) with labels.
   • Example Question:

     "Draw the pipe-filter architecture used in NEPSE’s stock data processing pipeline."

   • Answer Tip: Show 3 filters (e.g., "Data Cleaning" → "Normalization" → "Analysis") with arrows.

3. Scenario-Based Questions (30% of marks):

   • Example Question:

     "Design the architecture for a Nepalese online exam system (like NEB’s mock tests). Justify your choice of style and address scalability challenges."

   • Answer Structure:
     1. Style: Event-driven (for real-time proctoring events like "Exam started").
     2. Components: Microservices for Auth, Exam Engine, Proctoring.
     3. Trade-offs: "We prioritize availability over consistency to prevent exam delays during load shedding."

4. Trade-off Analysis (15% of marks):

   • Example Question:

     "A bank in Nepal must choose between CAP properties for its ATM network. Suggest a configuration and justify."

   • Answer Tip: Use the CAP triangle and explain:

     "We choose Availability (A) and Partition Tolerance (P) because ATMs must work during internet outages (common in rural Nepal), even if some branches show slightly stale balances (eventual consistency)."

Common Pitfalls to Avoid:

• Vague answers: Always tie concepts to Nepalese examples (e.g., "Like eSewa’s...").
• Ignoring NFRs: Exams often ask, "How would you ensure scalability in your design?" Answer with specific techniques (e.g., "Use load balancers like Nginx, as Daraz does").
• Overcomplicating: Stick to 2–3 architectural styles per question. Don’t mix microservices with pipe-filter unless asked.

Final Checklist for Full Marks: ✅ Define the architectural style/pattern. ✅ Draw a diagram (Mermaid or labeled). ✅ Give a Nepalese/global example. ✅ Discuss trade-offs (e.g., CAP, scalability vs. complexity). ✅ Link to NFRs (e.g., "This design ensures fault tolerance via...").
