Memory Hierarchy, Cache Design, and Address Mapping

TAKEAWAYS:

• Memory hierarchy trades off speed vs. cost by stacking smaller, faster layers (L1 cache → L2 → RAM → SSD → HDD) so the CPU rarely accesses slow storage.
• Cache mapping (direct-mapped, associative, set-associative) determines how blocks from main memory are placed in cache slots, affecting hit rates and replacement policies.
• Cache hits (data found in cache) are 10–100× faster than misses (fetching from RAM), so optimizing mapping and replacement (e.g., LRU) is critical for performance.
• Memory addressing must account for byte-addressability (each byte has a unique address) and word alignment (data must start at addresses divisible by word size).
• Cache coherence (ensuring all caches see the same data) is vital in multi-core systems, often handled via snooping protocols or directory-based schemes.
• Real-world impact: Poor cache design can slow down apps like Khalti’s payment processing (high miss rates → delays) or Daraz’s order queues (cache thrashing → crashes).

1. Why Memory Hierarchy? The Speed-Cost-Capacity Tradeoff

Computers cannot rely solely on fast but tiny registers or cheap but slow disks. Instead, they use a layered memory hierarchy to balance these needs. The goal: keep frequently used data close to the CPU while minimizing cost.

stateDiagram-v2
    [*] --> Access
    Access --> Cache: Hit (90% of accesses)
    Access --> RAM: Miss (10% of accesses)
    RAM --> Disk: Page fault (rare)
    Cache --> CPU: Data delivered
    RAM --> Cache: Data loaded
    Disk --> RAM: Data swapped

Key layers (from fastest to slowest):

Why not just use RAM everywhere?

• Cost: RAM is ~1000× more expensive per bit than HDDs.
• Power: Accessing RAM consumes 1000× more energy than cache.
• Latency: A single RAM access can stall the CPU for hundreds of cycles.

Real-world example: eSewa’s transaction system When you pay a bill via eSewa, the app must:

1. Fetch your account balance from L3 cache (if recently used).
2. If not found, load it from RAM (managed by the bank’s server).
3. If the RAM is full, swap data to SSD (but this is rare for active accounts). Poor cache design → delays in processing → frustrated users.

2. How Caches Work: Blocks, Tags, and Mapping

Caches store blocks (typically 32–128 bytes) of data from main memory. Each block has:

• A tag (identifies which memory block it belongs to).
• Valid bit (1 = data is valid; 0 = unused or stale).
• Dirty bit (1 = modified; must be written back to RAM).

Cache Mapping Schemes

The mapping function determines where a memory block goes in the cache. Three main types:

A. Direct-Mapped Cache

• Simplest: Each memory block maps to exactly one cache line.
• Formula: Cache index = (Memory address) MOD (Number of cache lines)
• Pros: Fast lookup, low hardware cost.
• Cons: Conflict misses (two frequently used blocks map to the same line).

Example Trace (Direct-Mapped Cache): Assume:

• Cache size = 8 lines (each 32 bytes).
• Memory block size = 1 KB (256 bytes).
• Memory address = 0x12345 (binary: 0001 0010 0011 0101 0101).

1. Calculate cache index: Index = (0x12345 / 1KB) MOD 8 = 47 MOD 8 = 7 → Maps to Line 7.
2. Extract tag: Tag = 0x12345 / (8 * 1KB) = 0x12 (simplified for example).
3. Check Line 7:
   • If tag matches and valid bit = 1 → HIT.
   • Else → MISS (fetch from RAM).

Worked Example: Daraz Order Queue Daraz’s backend uses a direct-mapped cache for order status updates:

• Memory block: Stores 1000 orders (1KB).
• Cache line: Holds orders for a specific zip code (e.g., Kathmandu 44600).
• Problem: If two zip codes (e.g., 44600 and 44700) map to the same cache line, conflict misses occur → slower order processing.
• Solution: Use set-associative mapping (see below).

B. Fully Associative Cache

• Flexible: Any memory block can go into any cache line.
• Pros: No conflict misses (optimal placement).
• Cons: Slow lookup (requires searching all lines), expensive hardware.

Limitation of Associative Memory (Exam Question!)

• Hardware complexity: Requires parallel tag comparisons (slow for large caches).
• Power consumption: High due to searching all lines.
• Example: Early CPUs (e.g., Intel 4004) used associative caches, but modern systems avoid this for L1/L2 due to speed limits.

C. Set-Associative Cache (Best of Both Worlds)

• Compromise: Cache divided into sets; each set has multiple lines (e.g., 2-way or 4-way).
• Example: A 16-line, 4-way set-associative cache has:
  • 4 sets (16 lines / 4 lines per set).
  • Each set can hold 4 blocks (but only one at a time).

How It Works (Example):

• Cache: 16 lines, 4-way set-associative.
• Memory block size = 64 bytes.
• Memory address = 0xA1B2C3D4.

1. Calculate set index: Set = (0xA1B2C3D4 / 64) MOD 4 = 1 → Goes to Set 1.
2. Tag comparison: Compare tag with all 4 lines in Set 1.
   • If any line’s tag matches → HIT.
   • Else → MISS (replace using LRU policy).

Worked Example: Ncell’s Call Routing Ncell’s call routing system uses a 4-way set-associative cache to store:

• Frequent tower IDs (e.g., towers in busy areas like Thapathali).
• Problem: If two towers map to the same set, one must be evicted.
• Solution: LRU replacement keeps the most recently used tower in cache.

3. Cache Replacement Policies

When a cache line is full and a new block arrives, the system must evict an existing block. Common policies:

Example: Pathao’s Ride-Matching Pathao’s backend uses LRU cache for:

• Driver locations: Frequently accessed drivers stay in cache.
• Problem: If a driver is idle for hours, they get evicted (FIFO would evict them too soon).
• Result: Faster ride assignments for active drivers.

4. Cache Performance Metrics

Example Calculation (Exam Question!):

• Hit time = 2 ns, Miss penalty = 100 ns, Hit rate = 90%.
• AMAT = 2 + (0.1 * 100) = 12 ns.

5. Memory Addressing and Byte-Addressable Systems

Modern computers use byte-addressable memory, where:

• Each byte has a unique address.
• Word size (e.g., 4 bytes) must be aligned to addresses divisible by word size.

Example (8-bit microprocessor):

• Memory address: 0x3040H (12320 in decimal).
• If storing a 16-bit (2-byte) word, it must start at an even address (e.g., 0x3040H).
• Misaligned access (e.g., storing at 0x3041H) may cause bus errors.

Worked Example: Assembly Program (Exam Question!) Task: Add two 8-bit numbers and store the result at 3040H. Solution (x86 Assembly):

MOV AL, [2000H]   ; Load first number from 2000H into AL
ADD AL, [2001H]   ; Add second number from 2001H
MOV [3040H], AL   ; Store result at 3040H

Trace:

1. MOV AL, [2000H] → Loads byte at 2000H into AL.
2. ADD AL, [2001H] → Adds byte at 2001H to AL.
3. MOV [3040H], AL → Stores sum at 3040H.

Real-world tie-in: Bank Loan Interest Calculation Banks use aligned memory access to:

• Store loan amounts in 4-byte (32-bit) words (aligned to addresses like 0x1000, 0x1004).
• Avoid misaligned accesses that could corrupt data (e.g., interest rate tables).

6. Cache Coherence in Multi-Core Systems

In multi-core CPUs, each core has its own cache. The problem:

• Stale data: If Core 1 modifies a variable in its cache, Core 2’s cache may still have the old value. Solutions:

1. Snooping Protocol (MESI):
   • Modified (M): Exclusive copy (dirty).
   • Exclusive (E): Clean copy (shared but not modified).
   • Shared (S): Read-only copy.
   • Invalid (I): Stale copy.
2. Directory-Based Coherence:
   • A central directory tracks which cores have which data.

Example: NEPSE Stock Trading System NEPSE’s servers use cache coherence to:

• Ensure all traders see the same stock price (no stale data).
• Use MESI protocol to invalidate old prices when updated.

In the Real World

1. eSewa’s Payment Processing

   • Idea: Cache hierarchy (L1/L2 for transaction logs, RAM for active payments, SSD for history).
   • How: Frequently used accounts (e.g., your eSewa ID) stay in L3 cache; rarely used accounts go to RAM/SSD.
   • Impact: Faster payments → happier users.

2. Pathao’s Ride-Matching Algorithm

   • Idea: Set-associative cache for driver locations.
   • How: Nearby drivers are cached in sets based on grid zones (e.g., Lalitpur vs. Bhaktapur).
   • Problem: If two zones map to the same set, conflict misses slow down matching.
   • Solution: LRU replacement keeps active drivers in cache.

3. Daraz’s Order Fulfillment

   • Idea: Direct-mapped cache for inventory status.
   • How: Each warehouse’s inventory block maps to a specific cache line.
   • Issue: If two warehouses (e.g., Kathmandu and Pokhara) map to the same line, thrashing occurs → delays.
   • Fix: Upgrade to 4-way set-associative cache.

4. Ncell’s Call Routing

   • Idea: Cache replacement policies (LRU for active towers).
   • How: Towers handling many calls stay in cache; idle towers are evicted.
   • Result: Faster call connections during peak hours.

5. Bank Loan Servers

   • Idea: Byte-addressable memory for loan records.
   • How: Each loan’s interest rate is stored in a 4-byte word at an aligned address (e.g., 0x2000).
   • Why: Misaligned access could corrupt loan data → financial losses.

Exam Tip

1. Memory Hierarchy Diagram: Always draw the speed-size-cost tradeoff pyramid in exams. Label each layer and its typical use case.
2. Cache Mapping Questions:
   • For direct-mapped, show the modulo calculation (e.g., address MOD cache_lines).
   • For set-associative, explain sets + ways (e.g., "8 sets, 4-way").
3. Hit Rate Calculations:
   • If given hits = 1000, misses = 200, hit rate = 1000 / (1000 + 200) = 83.3%.
   • AMAT = hit_time + miss_rate * miss_penalty.
4. Assembly Programs:
   • For memory operations, show:
     • Load (MOV AL, [addr]).
     • Store (MOV [addr], AL).
     • Alignment (e.g., 16-bit words must start at even addresses).
5. Real-world Applications:
   • eSewa/Khalti: Cache hierarchy for transactions.
   • Pathao/Daraz: Cache mapping for location/data.
   • Banks/NEPSE: Memory alignment for critical data.
6. Common Pitfalls:
   • Forgetting valid/dirty bits in cache lines.
   • Misaligned memory access in assembly.
   • Ignoring miss penalty in AMAT calculations.

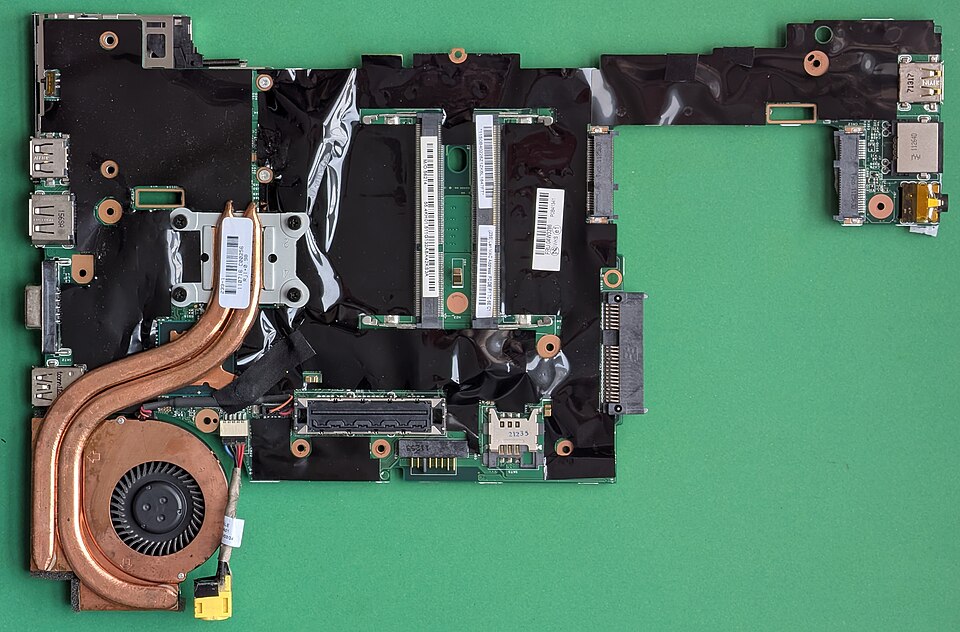

A close-up of a modern CPU motherboard showing L1/L2 cache (inside CPU), RAM slots, and SSD/HDD connectors. (Image: Siarhei Besarab, CC BY-SA 4.0, via Wikimedia Commons)
